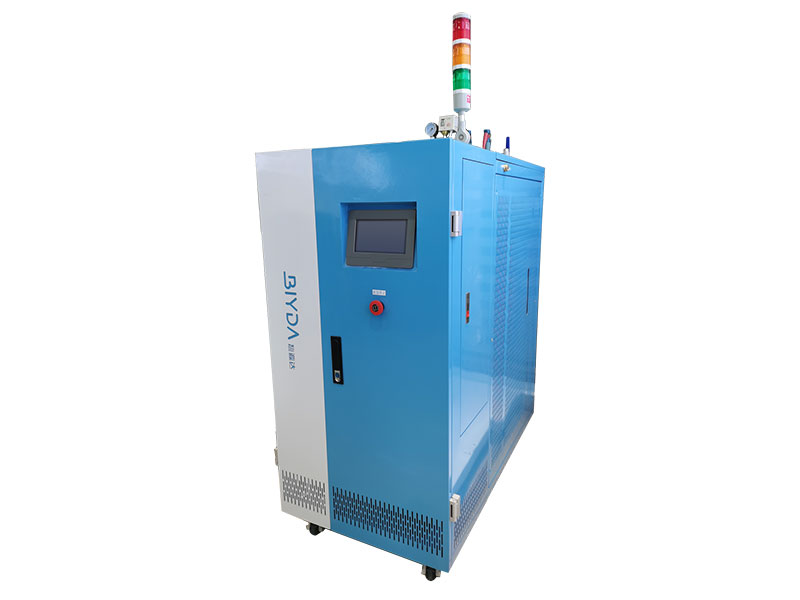

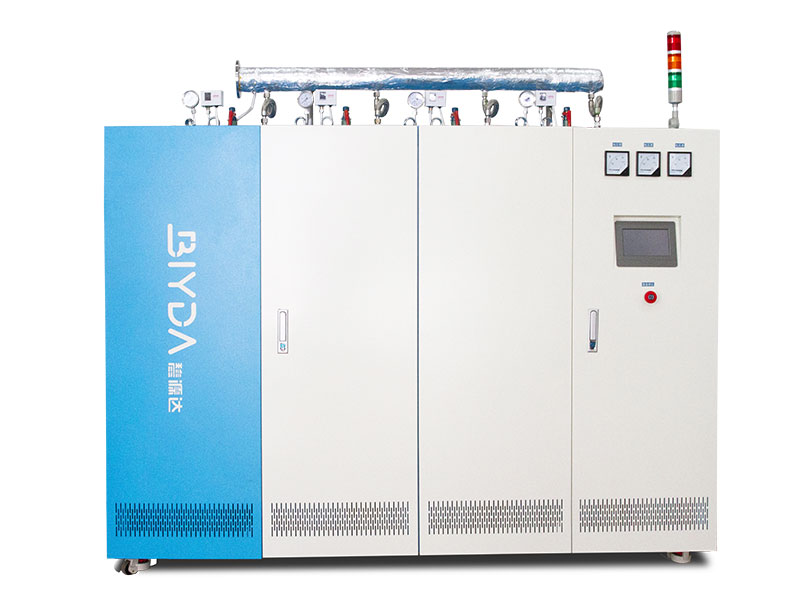

Induction Heating Steam Generator

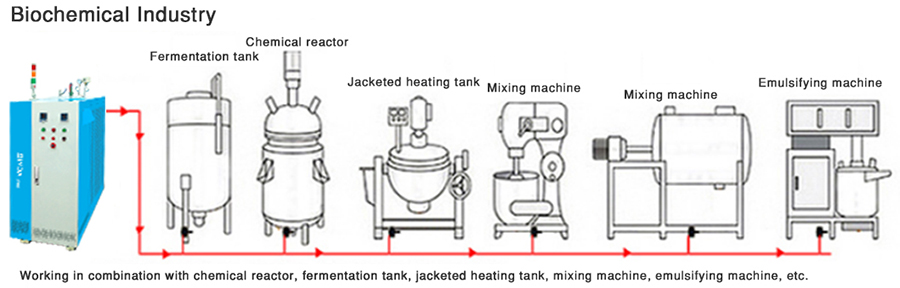

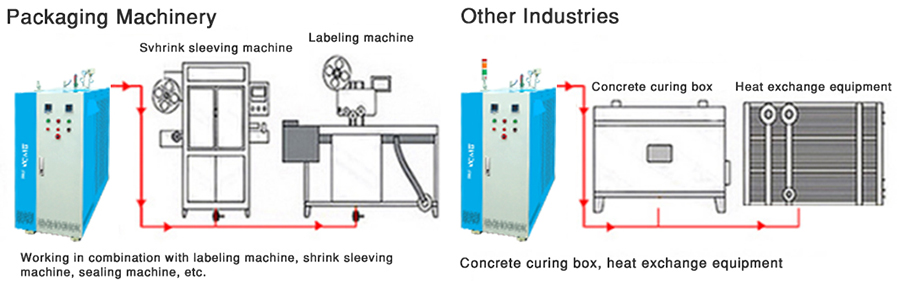

BIYDA provides induction heating steam generator with power ranging from 6 to 80kW with operating frequency of 5-30KHz, multiple units can be used in parallel when higher power is needed. Electromagnatic induction for steam production is a more effective way compared to electric heating. By providing rapid operation and more energy savings, this steam generating unit is widely used in various industries such as clothing, biochemical, food machinery, packaging machinery, etc.

20-80kw Steam Generator
120-360kw Steam Generator
15-30kw Heating Steam Generator

Download

2-15kW Heating Steam Generator Specifications

Item	Unit	BYD-Z002	BYD-Z003	BYD-Z005	BYD-Z006	BYD-Z008	BYD-Z010	BYD-Z012	BYD-Z015
Item	Unit	DLW1-F	DLW1-F	DLW1-F	DLW1-F	DLW1-F	SLW1-F	SLW1-F	SLW1-F
Rated power	KW	2	3.5	5	6	8	10	12	15
Rated current	A	9	15.75	22.5	27	36	15	18	22
Voltage/Frequency	V/Hz	220/50-60	220/50-60	220/50-60	220/50-60	220/50-60	380/50-60	380/50-60	380/50-60
Cross section area of power cable	mm²	≥2	≥4	≥6	≥6	≥10	≥4	≥6	≥6
Protection grade	IP	33	33	33	33	33	33	33	33
Heating efficiency	％	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8
Steam output	Kg/h	3	5	7	8.5	11	14	17	21
Steam pressure	Mpa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Steam temperature	℃	171	171	171	171	171	171	171	171
Water volume	L	2	2	2	6	6	6	6	6
Steam outlet size	DN	10	10	10	10	10	10	10	10
Water inlet size	DN	15	15	15	15	15	15	15	15
Drain outlet size	DN	10	10	10	10	10	10	10	10
Dimensions	mm	280580420	280580420	280580420	380650670	380650670	380650670	380650670	380650670

20-80KW Heating Steam Generator Specifications

Item	Unit	BYD-Z020SLW1-F	BYD-Z030SLW1-F	BYD-Z040SLC1-S	BYD-Z050SLC1-S	BYD-Z060SLC1-S	BYD-Z080SLC1-S
Rated power	KW	20	30	40	50	60	80
Rated current	A	30	45	60	75	90	120
Voltage/Frequency	V/Hz	380/50-60	380/50-60	380/50-60	380/50-60	380/50-60	380/50-60
Cross section area of power cable	mm²	≥10	≥10	≥16	≥25	≥25	≥35
Protection grade	IP	33	33	33	33	33	33
Heating efficiency	％	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8
Steam output	Kg/h	27.5	41.5	56	70	84	112
Steam pressure	Mpa	0.7	0.7	0.7	0.7	0.7	0.7
Steam temperature	℃	171	171	171	171	171	171
Water volume	L	20	20	25	25	25	25
Steam outlet size	DN	15	15	15	15	15	15
Water inlet size	DN	15	15	15	15	15	15
Drain outlet size	DN	15	15	25	25	25	25
Dimensions	mm	400800800	400800800	60011001250	60011001250	60011001250	60011001250

120-360KW Heating Steam Generator Specifications

Item	Unit	BYD-Z120SLC1-S	BYD-Z160SLC1-S	BYD-Z240SLC1-S	BYD-Z320SLC1-S	BYD-Z360SLC1-S
Rated power	KW	120	160	240	320	360
Rated current	A	180	240	360	480	540
Voltage/Frequency	V/Hz	380/50-60	380/50-60	380/50-60	380/50-60	380/50-60
Cross section area of power cable	mm²	≥75	≥120	≥150	≥240	≥300
Protection grade	IP	33	33	33	33	33
Heating efficiency	％	≥98.8	≥98.8	≥98.8	≥98.8	≥98.8
Steam output	Kg/h	167	222	333	445	500
Steam pressure	Mpa	0.7	0.7	0.7	0.7	0.7
Steam temperature	℃	171	171	171	171	171
Water volume	L	29	29	29	29	29
Steam outlet size	DN	50	50	50	50	50
Water inlet size	DN	25	25	25	25	25
Drain outlet size	DN	25	25	25	25	25
Dimensions	mm	110012001500	110012001500	155012001500	200012001500	200012001500

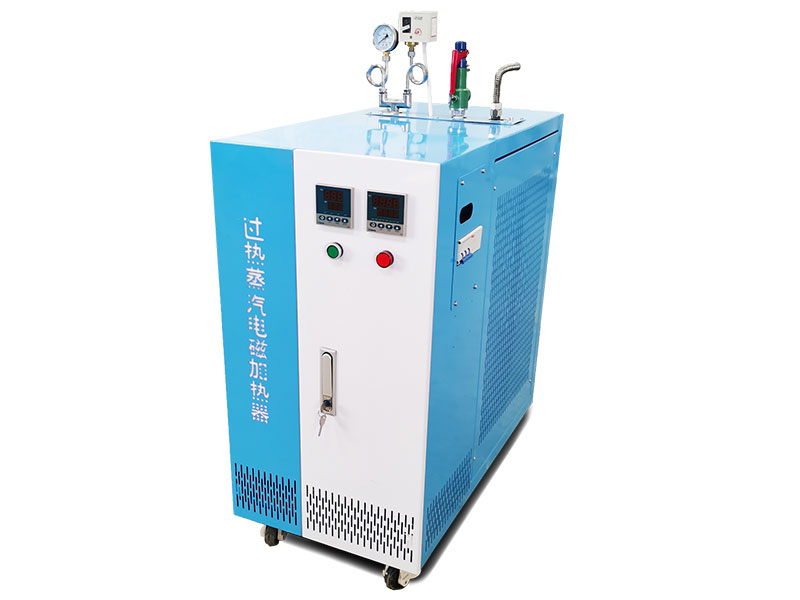

15-30KW Heating Steam Generator Specifications

Item	Unit	BYD-G15SLW1-F	BYD-G20SLW1-F	BYD-G25SLW1-F	BYD-G30SLW1-S
Rated power	KW	15	20	25	30
Rated current	A	22.5	30	37.5	45
Voltage/Frequency	V/Hz	380/50-60	380/50-60	380/50-60	380/50-60
Cross section area of power cable	mm²	≥6	≥10	≥10	≥16
Protection grade	IP	33	33	33	33
Heating efficiency	％	≥98.8	≥98.8	≥98.8	≥98.8
Max. Steam temperature	℃	500	500	500	500
Heating output	MJ/h	54	72	90	108
Steam inlet size	DN	15	15	15	15
Steam outlet size	DN	15	15	15	15
Dimensions	mm	450850900	450850900	450850900	450850900

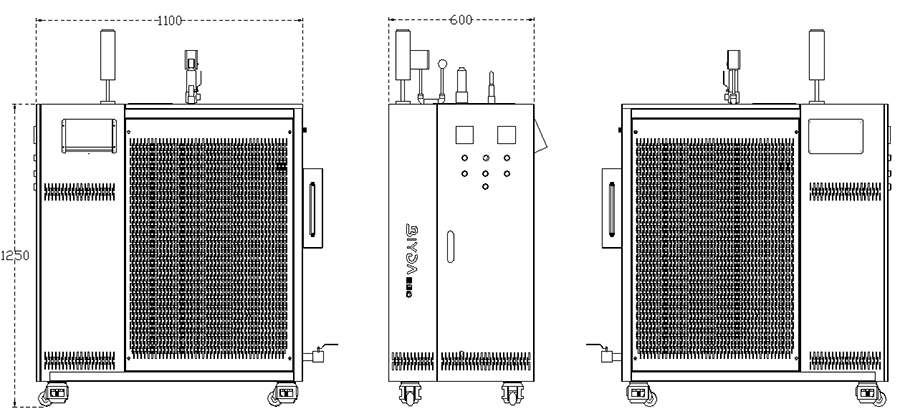

Dimensioning

Features

One key start, steam is produced within 5 seconds without pre-heating;
Intelligent control, attended monitoring is unnecessary;
Combining techniques of water cooling and waste heat recovery;
Volume of heating unit is less than 30L, eliminating the need for annual boiler inspection;

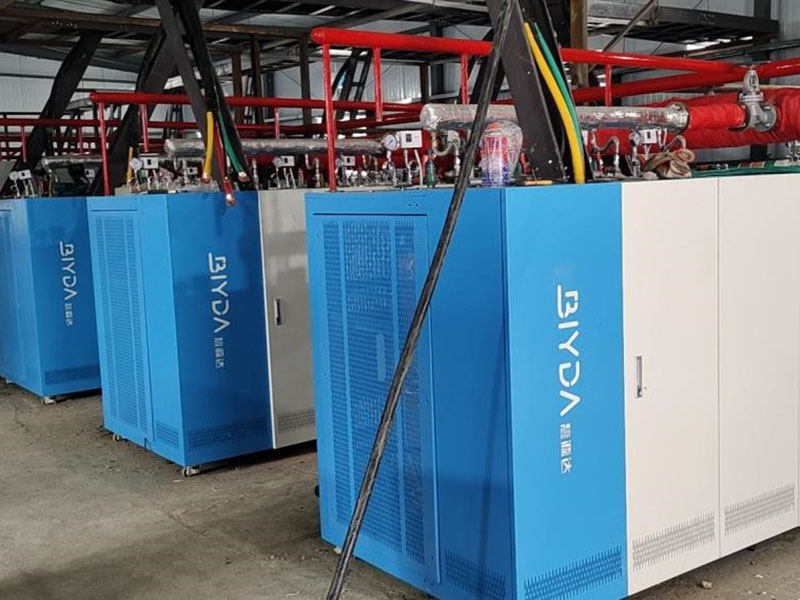

Modular installation, multiple units can be used in parallel;
Steam can be heated to a temperature up to 171ºC;
Saving energy of 30-60%;

Steam Generator Applications

Hotel Public Bath & Sauna

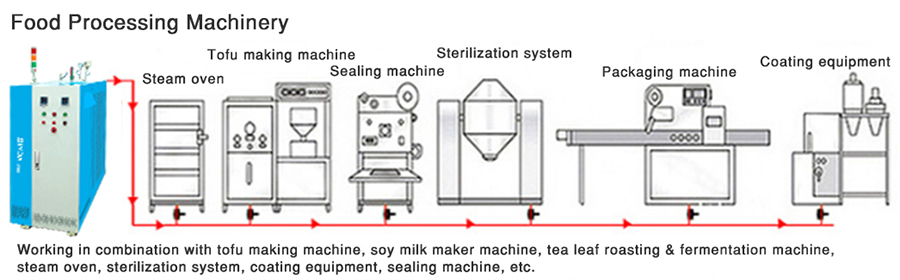

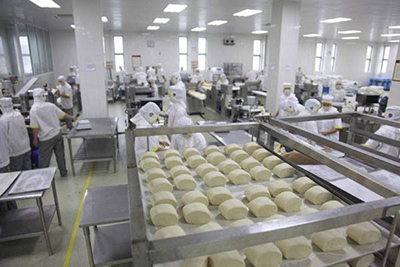

Food Processing

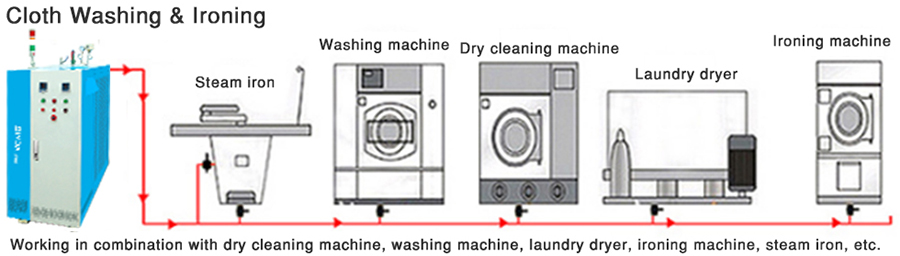

Cloth Washing & Ironing

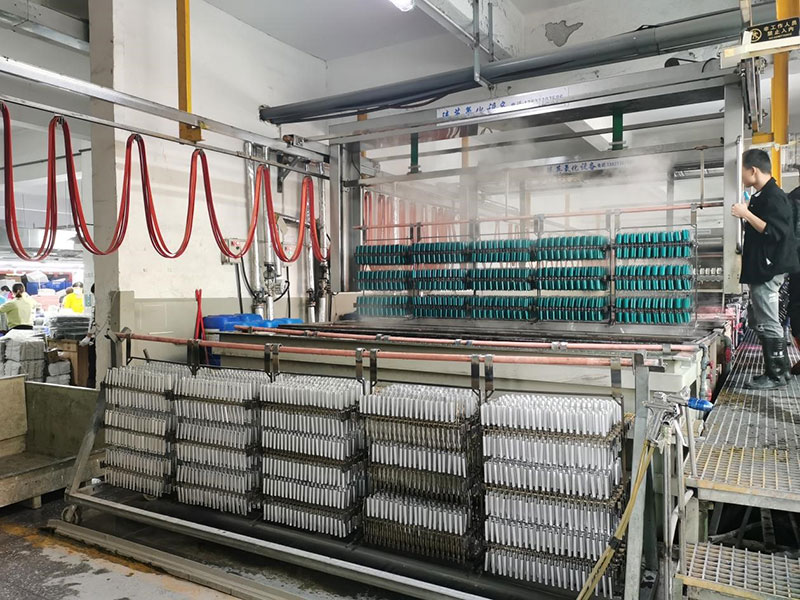

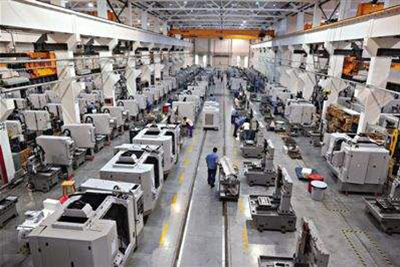

Industrial Production

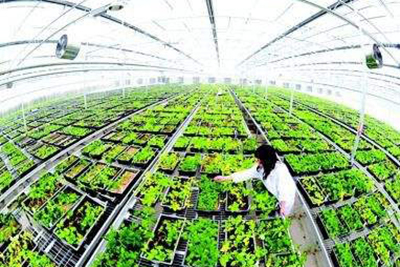

Plant Breeding

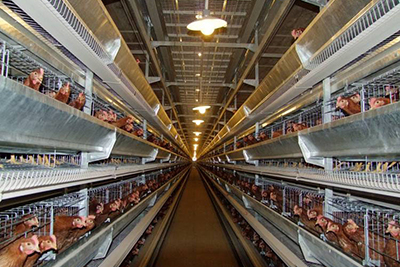

Poultry Farm Heating

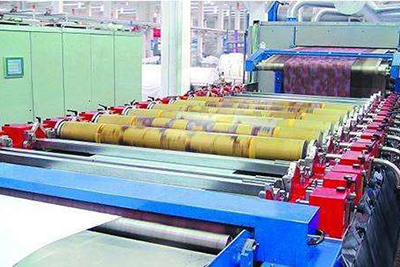

Textile Printing & Dyeing

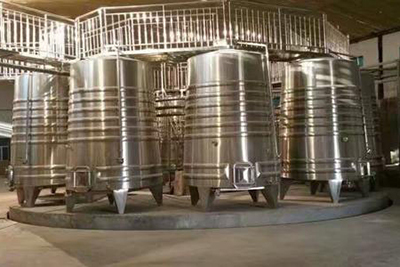

Brewing & Distilling
Medical Sterilization

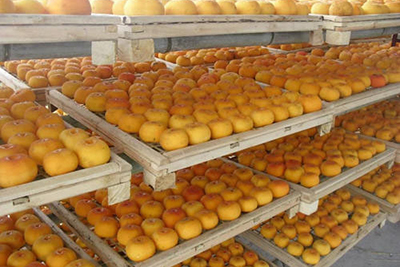

Agriculture Crop Drying

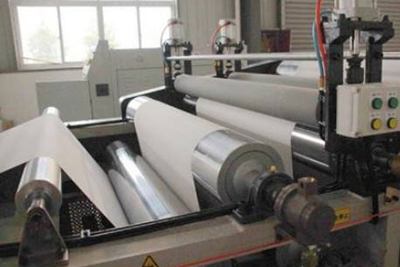

Pulp & Paper Manufacturing

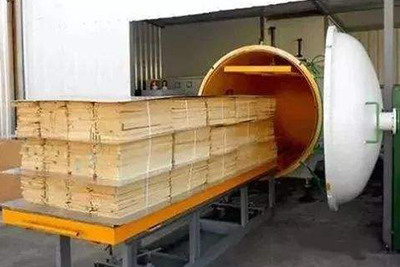

Wood Drying
