Induction Heating Hot Air Generator

BIYDA designs and produces custom-specific induction heating hot air generators with 15KW-1000KW of output power and 5-30kHz frequency range, which are widely applicable to various industries, such as animal husbandry, greenhouse growing, pipe heating, wood drying, as well as other heating applications for workshops and outdoor use.

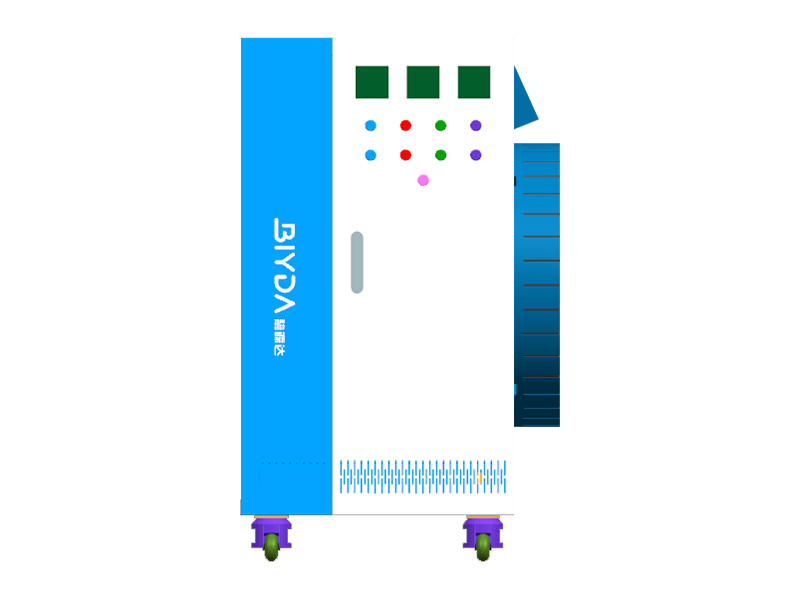

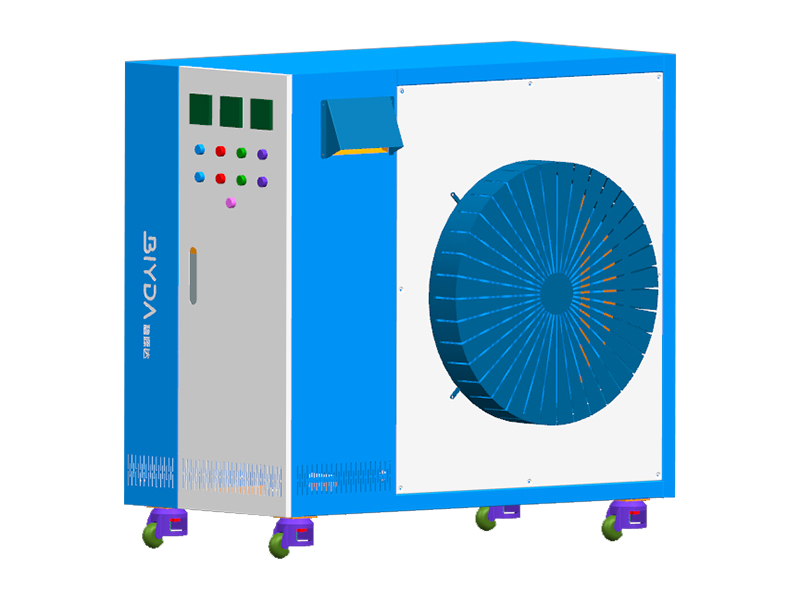

15-80kW Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
Download
12-30KW Steam Generator Specifications
Item Unit
BYD-R012SLW1-F
BYD-R015SLW1-F
BYD-R020SLW1-F
BYD-R025SLW1-F
BYD-R030SLW1-F
Rated power KW 12 15 20 25 30
Rated current A 18 22.2 30 37.5 45
Voltage/Frequency V/Hz 380/50-60 380/50-60 380/50-60 380/50-60 380/50-60
Cross section area of power cable mm² ≥4 ≥6 ≥10 ≥10 ≥16
Protection grade IP 33 33 33 33 33
Heating efficiency % ≥98 ≥98 ≥98 ≥98 ≥98
Max. hot air temperature ℃ 150 150 150 150 150
Air outlet size mm 250*250 250*250 250*250 250*250 250*250
Air volume W 250 250 250 250 250
Fan power pa 130 130 130 130 130
Air pressure Ml³/h 4300 4300 4300 4300 4300
Dimensions mm 550*1100*980 550*1100*980 550*1100*980 550*1100*980 550*1100*980
40-80KW Steam Generator Specifications
Item Unit
BYD-R040SLW1-F
BYD-R050SLW1-F
BYD-R060SLW1-F
BYD-R070SLW1-F
BYD-R080SLW1-F
Rated power KW 40 50 60 70 80
Rated current A 60 75 90 105 120
Voltage/Frequency V/Hz 380/50-60 380/50-60 380/50-60 380/50-60 380/50-60
Cross section area of power cable mm² ≥16 ≥25 ≥25 ≥35 ≥35
Protection grade IP 33 33 33 33 33
Heating efficiency % ≥98 ≥98 ≥98 ≥98 ≥98
Max. hot air temperature ℃ 150 150 150 150 150
Air outlet size mm 350*350 350*350 350*350 350*350 350*350
Air volume W 5075-13000 5075-13000 5075-13000 5075-13000 5075-13000
Fan power pa 700 700 700 700 700
Air pressure Ml³/h 130 130 130 130 130
Dimensions mm 600*1200*1150 600*1200*1150 600*1200*1150 600*1200*1150 600*1200*1150

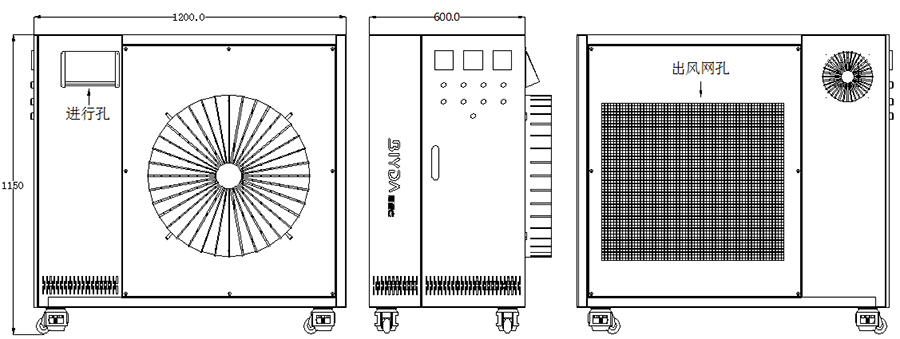

Dimensioning
Induction Heating Hot Air Generator
Features of Induction Heating

Energy Saving
Using electromagnetic induction heating, heating efficiency of over 98% can be achieved, providing energy savings of 30% or more in comparison with conventional electric heating unit.

Safe & Comfortable
The surface temperature of induction heating coil is approximately 60°C only, which efficiently prevents human from burn injuries and avoids the risk of high workshop temperature caused by large amounts of heat that is usually generated from traditional heating resistance of 600°C surface temperature.

Long Service Life
In induction heater, the coils are wound up by high-temperature resistant wires that feature a good insulation performance. The coil does not contact the workpieces, can provide long service life of more than 10 years while reducing maintenance cost.

Even Heating & Accurate Temperature Control
With extremely-low thermal inertia, induction heating can achieve accurate control of temperature and even heating. Therefore, the product quality and productivity can be significantly improved.

Intelligent Control & Low Labor Intensity
The induction heating unit has functions of automatic control of heating temperature, automatic start / shut down, automatic circulation heating, pre-setting of temperature and time, attended monitoring is not required.

Delay Function Protection With the help of 3-minute delay function, the fan runs continuously for 3 minutes when the system is turned off, it aims at exhausting the residual heat to further ensure the usage safety.

Our standard induction heating systems are carefully designed to meet customer’s applications. We are also capable of customizing any induction heating hot air system to satisfy customer’s specific needs. If you are still struggling to identify the correct one from these models, our staffs are happy to help.

Hot Air Generator Applications
The induction heating hot air generator is widely used for food drying, coal mining, greenhouse crop production, poultry house heating, orchard heating and more agricultural and industrial heating and drying applications.

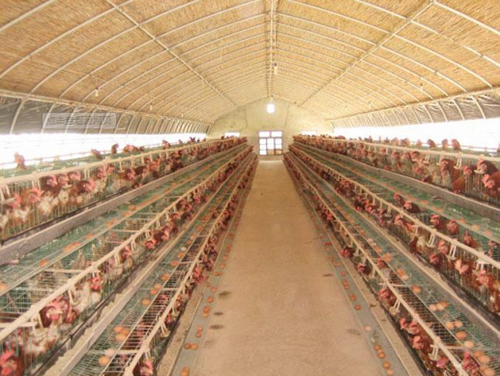

Poultry House Heating
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator

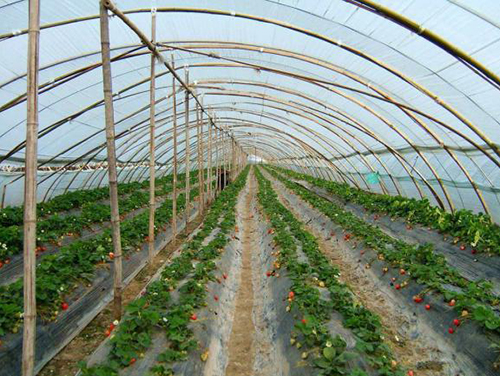

Greenhouse Crop Production
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator

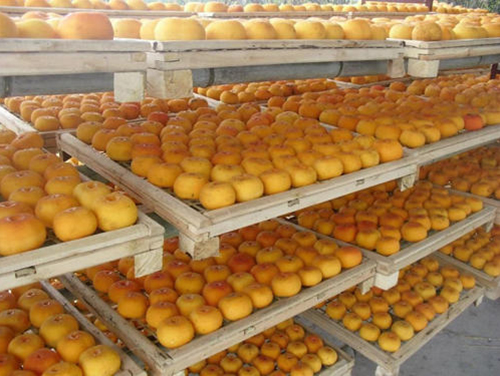

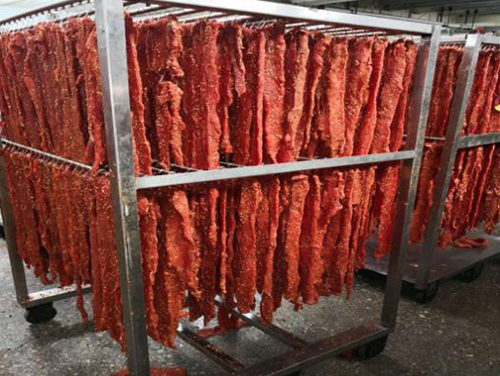

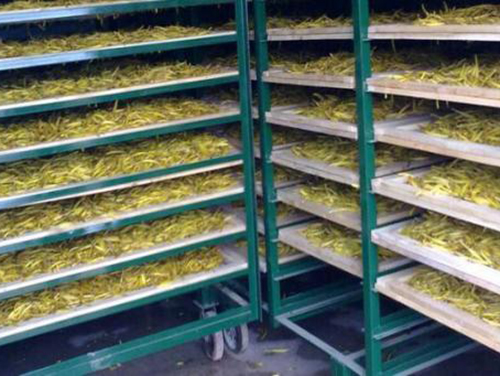

Food Drying
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator
  • Induction Heating Hot Air Generator

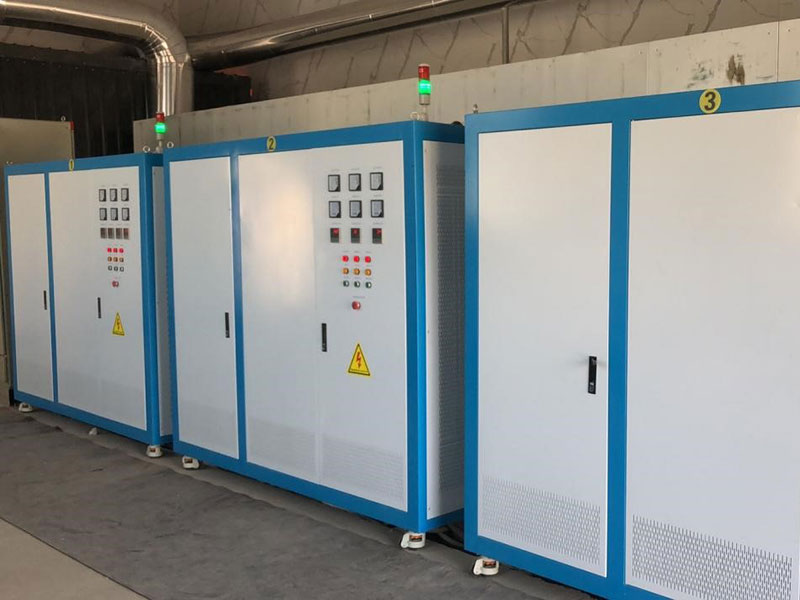

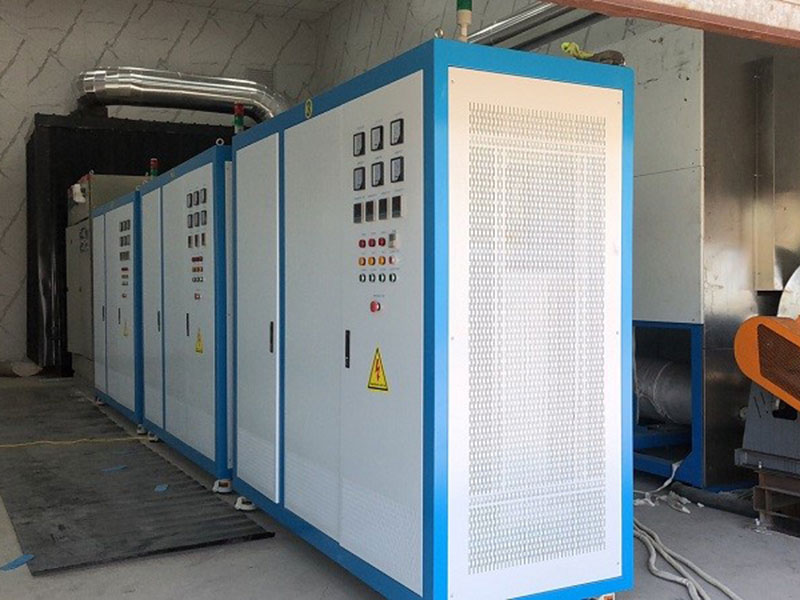

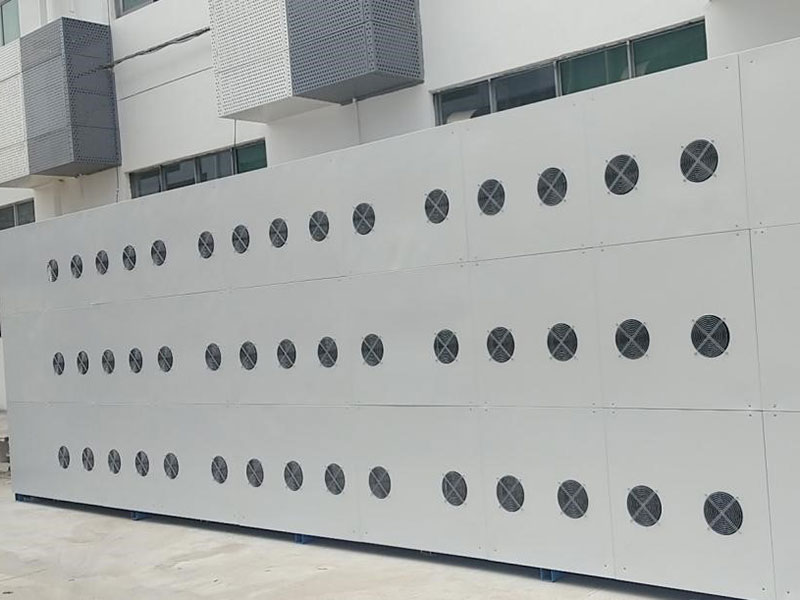

1 MW high-temperature induction hot air furnace settled in Xinjiang Changji Prefecture, its output air temperature can reach 1000 degrees.
