Shenzhen Biyuanda Technology Co. Ltd.

Energy Saving
Using electromagnetic induction heating, heating efficiency of over 98% can be achieved, providing energy savings of 30% or more in comparison with conventional electric heating unit.

Safe & Comfortable
The surface temperature of induction heating coil is approximately 60°C only, which efficiently prevents human from burn injuries and avoids the risk of high workshop temperature caused by large amounts of heat that is usually generated from traditional heating resistance surface.

Long Service Life
In induction heater, the coils are wound up by high-temperature resistant wires that feature a good insulation performance. The coil does not contact the workpieces, can provide long service life of more than 10 years while reducing maintenance cost.

Even Heating & Accurate Temperature Control
With extremely-low thermal inertia, induction heating can achieve accurate control of temperature and even heating. Therefore, the product quality and productivity can be significantly improved.

Intelligent Control & Low Labor Intensity
The induction heating unit has functions of automatic control of heating temperature, automatic start / shut down, automatic circulation heating, pre-setting of temperature and time, attended monitoring is not required.

Induction heating equipment is a unit converting electrical energy into heat by means of electromagnetic induction. The AC input power (220V/380V/415V/660V, 50/60Hz) is converted into the direct current through rectifier circuit, and then the direct current is changed to high frequency alternating current, the frequency ranges between 5-30kHZ. The alternating magnetic field is created when high frequency alternating current is delivered to induction coil, it penetrates the objects (iron, cobalt, nickel and other metals having magnetic permeability) to allow generating eddy currents. Heat is produced where these eddy currents flow, that is, inside the object. Through the inducting heating process, metals can be heated in a rapid and efficient manner.

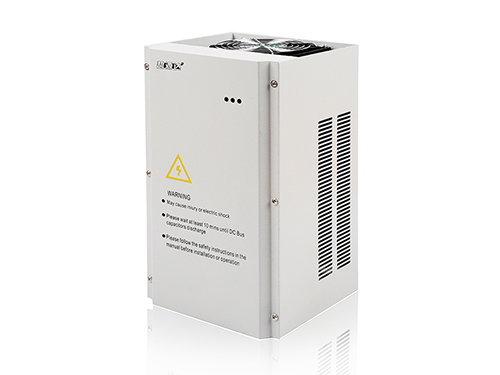

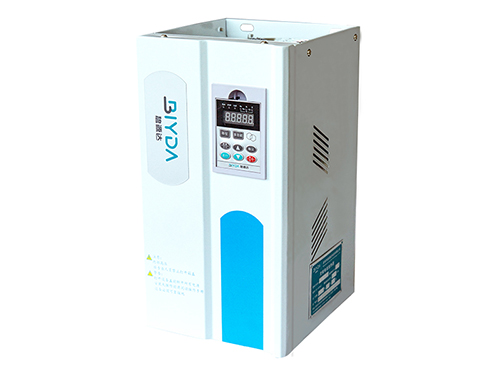

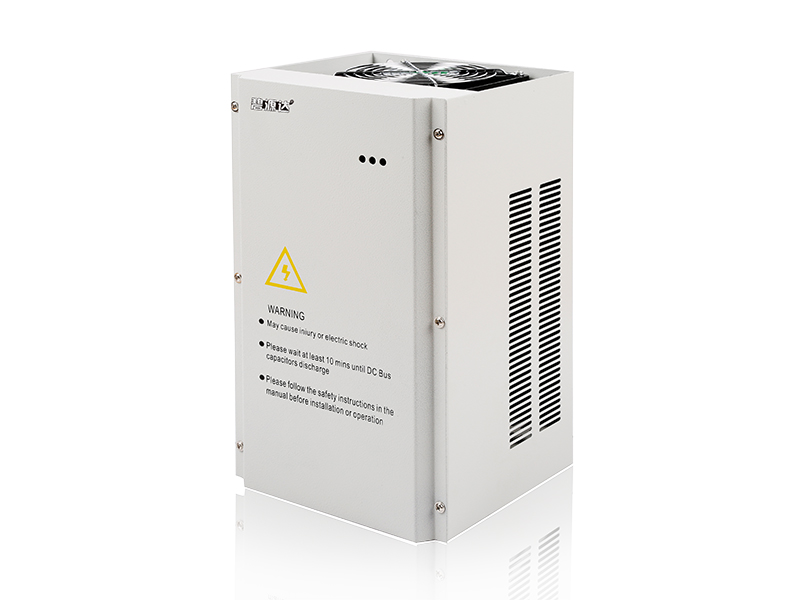

Power supplies are one of the important components of an induction heating system. BIYDA designs and manufactures induction heating power supplies with 0.5KW-320KW of output power and 5-30kHz frequency range, suitable for a number of induction heating applications, such as rubber & plastic processing machinery, industrial furnace, biochemical equipment, food machinery, medical equipment, hot air drying equipment, hot water equipment, thermal oil equipment, paper making machine, electroplating machine, etc.
