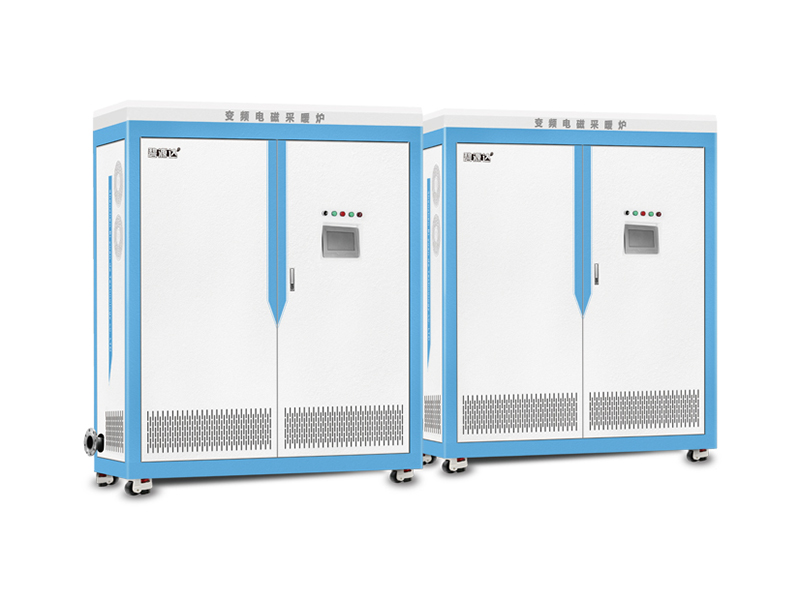

BYD-C320SLC1-S for touch screen type water cooled model
Model
Unit
BYD-C320SLC1-S
Power
kW
320
Current
A
480
Voltage/Frequency
V/Hz
380V/415V/50
Cross section area of power cable
m²
3*240
Protection grade
IP
33
Heating efficiency
%
≥98
Heat dissipation of enclosure
%
≤2
Max. volume of heating
L
5866
Max. pressure of heating
Mpa
0.2
Min. flow of pump
L/min
384
Expansion tank volume
L
320
Max. heating temperature
℃
90
Min. temperature
℃
5
65ºC hot water output
L/min
104
Dimensions
mm
1910*1720*1000
Inlet/outlet connection
DN
100(4 inch flange)
Heating area
m²
2560-3840
Approximate heated volume
m³
11040-15300
Electric meter
A
3-phase power meter 1.5-1.6A, metering transformer needs to be installed rationally by professional personnel
Weight
kg
750

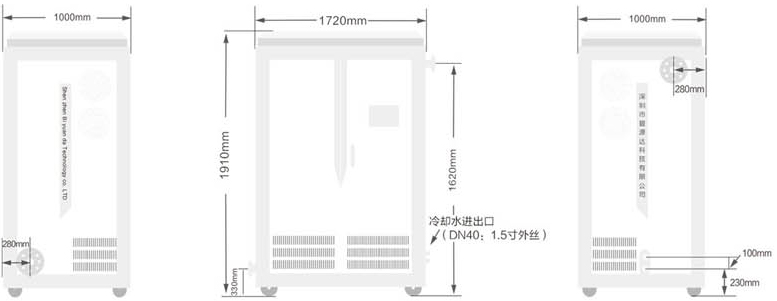

Dimensioning
Features
Energy Saving
When the indoor temperature exceeds the pre-set value, the central heating boiler will be automatically turned off, thus efficiently saving more than 30% energy. And it can save energy by 20% in comparison with traditional boilers that use resistance heating method.
Constant Temperature and Comfortable Space
Water temperature can be controlled within a range of 5~90ºC, and the precision of temperature control can reach ±1ºC, providing a comfortable atmosphere for your space. Unlike air conditioning equipment, induction heating does not create an ideal environment for bacteria to grow.
No Noise
In contrast to central heating boilers using air cooling method, water cooled heating boilers are more quiet and unobtrusive.
Safe Operation
Utilizing induction heating achieves separation of electricity and water, providing a safer operation. Besides, multiple protection functions such as antifreeze protection, electricity leakage protection, short circuit protection, phase loss protection, overheating protection, overcurrent protection, overvoltage protection, undervoltage protection, self-inspection protection are equipped. Safe usage is guaranteed for 10 years.
Intelligent Control
Our induction central heating boilers can be WIFI remotely controlled by smart phones.
Easy to Maintain
Induction heating do not constitute the condition of fouling, eliminating the need for fouling removing treatment.
Installation
Direct Installed Heating Mode
Installation Method of Fan Coil Unit
Idirect Heat Sink Installation
Hot Water Storage Tank Installation
FAQ
Please Contact Our Customer Service before Make a Purchase
About Choosing Appropriate Power
Choosing a suitable boiler based on your actual heating area
For low-energy buildings, 60~80W/m² boilers are suitable;
For general buildings, 80~100W/m² boilers are suitable;
For villas and bungalows, 100~150W/m² boilers are suitable;
For those buildings where sealing performance is not well and room height is greater than 2.7m or people frequently enter, the building heat load is correspondingly increased and the power of central heating boiler should be higher.
About Installation Conditions
What are installation conditions
Take a 15kW induction central heating boiler as an example:
The cross section are of main power cable should not be less than 6mm3, main switch 32~45A, voltage 380V/50, minimum water flow of pump is 25L/min, the water pump needs to be selected according to building height.
About Accessories
What accessories are required
Since every installation site of customer is different, so that various accessories are required. We only provide central heating boilers, other accessories such as pump valve, piping and union connectors need to be purchased by customers.
About Connections For Heating
What are applicable connections for heating
BIYDA’s induction central heating boilers can be flexibly connected to floor heating system, radiator, hot water storage tank, fan coil unit (FCU), etc.
About Installation Service
Our products can be installed by our authorized local dealers. We also accept advance reservation, and we designate engineers to offer installation service and technical guidance on site.
About Logistics
Shipping time and logistic distribution
We promise to ship our ready-to-ship products within 24 hours, and ship our made-to-order products within 7-10 days. And the logistics service is based on customers’ requirements.
About Service Life
How long is this product’s service life
BIYDA’s induction central heating boiler adopts high-frequency induction coil and industrial grade inverter, all key parts are made of imported high grade materials, its service life can reach 15 years or more.
